Snug Suspended
Overview

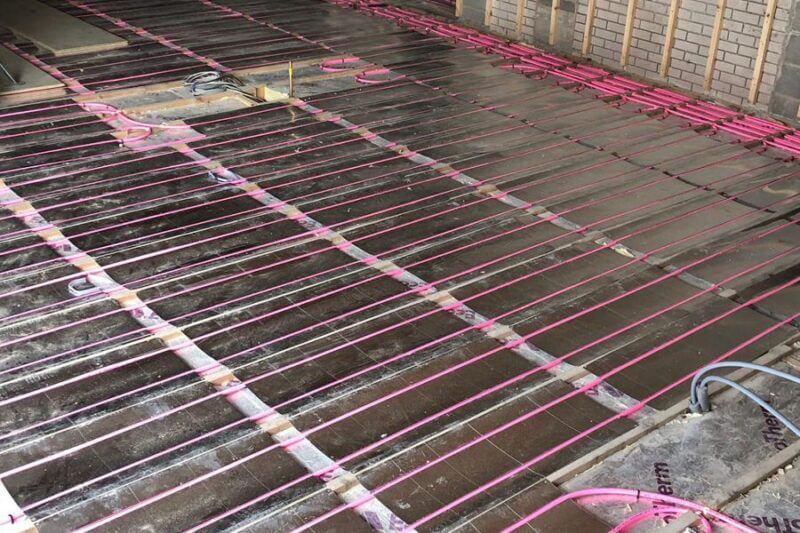

Our Snug Suspended Heat Plate System simplifies installation on joists, making it ideal for renovations and first or second floors.
This system preserves floor height and eliminates the need for screed. Designed to fit between standard 400mm joists on any storey, we also offer custom sizes to accommodate bespoke joist dimensions. Its aluminum sheet ensures even heat distribution.
What’s unique about the Snug Suspended Heat Plate system?
The Snug Suspended Heat Plates have self-retaining grooves, making installation an easy, one-person job.
Download Data Sheet
Features and Benefits
| Easy to install |
| Pre-spaced options are available at 133CC or 200CC |
| Heat Plate size 390mm X 1000mm X 16.5mm |
| Custom heat plates available for irregular joist sizes upon request |
| Rockwool required. This needs to be installed so that it is pressing up against the heat plate |
| Fixed with a nail in either side of the heat plate middle, not in the corners |
| 5mm gap between each heat plate is required and a 200mm gap at the edge of the room, to allow for heat expansion |
| Structural board required to be laid on top |
| Pipe Size: 16mm |
| Maximum loop length per port on the manifold: 100m |
| No damp proof membrane (DPM) is required |
| Both PEX or AL-PEX pipe options are available |
| Generates outputs of up-to 81w/m² |
| 200CC is standard |
| 150CC improved efficiency – standard for heat pumps |
| 133CC improved efficiency |
This flexible and versatile system can be laid using the following pipe design options:
Serpentine
Why choose Snug?
24 Hour Quotations
Quick and efficient quote turnarounds to help you secure and progress projects.
Free Design Service
Full pipe layouts and low-profile system board designs provided as standard, to help speed up installation time.
Full Product Warranties
Giving you and your customers total peace of mind.
How to install Snug Underfloor Heating Suspended Heat Plate System
