Overview

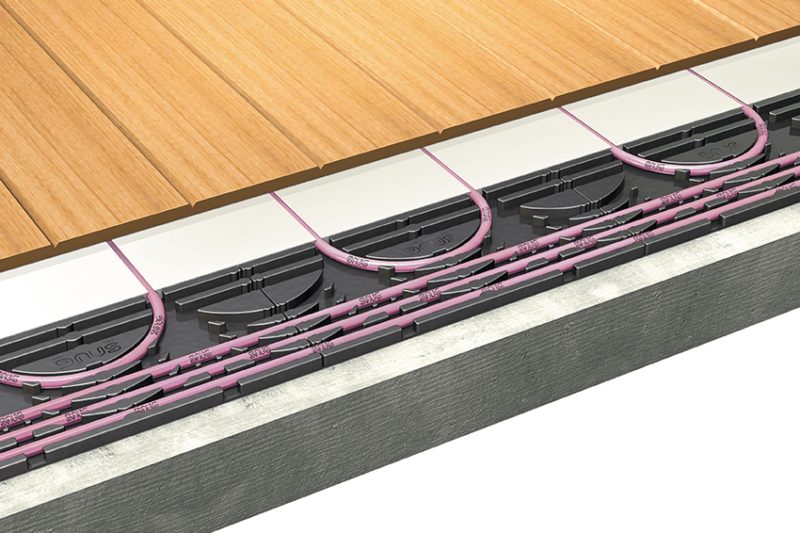

Our Snug Low-Profile Groove Board system makes underfloor heating achievable when floor height is an issue, at just 18mm thick. Our easy to follow, unique board and pipe layout designs speed up your installation time.
Tiles can be laid directly on top of the boards, removing the need for screed, and speeding up the overall time of the project. This system is ideal for retrofits and renovations.
What’s unique about the Low-Profile Groove Board Snug system?
- It’s 45% cheaper than castellation mats and levelling compound.
- It saves valuable floor height. On average it’s 3mm lower than using a low-profile castellation system with 16mm pipes and levelling compound.
- It’s fast. Because it doesn’t need levelling compound, you don’t have to wait for anything to cure, so you can just tile straight on top.
- Our low-profile groove boards hold heat so it slowly radiates into the room, making the system extremely energy efficient and spreading heat more evenly.
- Our Snug Support low-profile ends are the most versatile on the market and make it easier to install pipes in narrow halls than with castellation mats. Plus, they’re installer friendly, letting pipework turn easily within the room for fast, simple, stress-free fitting and removing any need to cut them.
- Our Snug low-profile end supports and low-profile groove boards often allow for direct installation of your chosen floor finish, potentially eliminating the need for levelling compounds or ply boards. However, this will vary depending on the specific flooring material.
Features and Benefits
| Easy to install – Full pipe and board design supplied |
| No drying time |
| Ideal when you have minimal height available, only 18mm |
| Easy single person install |
| Pre-spaced at 150mm |
| Gypsum board size 800mm X 600mm X 18mm |
| Can be laid onto to any structural level floor |
| Perfect when there isn’t room for insulation, although insulation or foil is recommended |
| Unique small and large end supports to assist with turns and trunking |
| Optimum install pattern – double serpentine |
| Pipe size: 12mm PEX |
| Generates outputs of up-to 104.4w/m² |
| Tile – Ability to tile directly to the groove boards using standard tile adhesive. A decoupling mat is recommended. |
| Laminate Floors/Wood – Can be laid directly onto the low-profile boards. Flexible levelling compound may be required to fill in gaps and uneven sections. |
| Vinyl – 10mm of flexible levelling compound is required on top on the underfloor heating system. |
| Carpet – 10mm of flexible levelling compound is required on top on the underfloor heating system. |
A 10mm Flexible levelling compound can be installed for any floor finish, this will improve the performance and efficiency of the system.
Floor Finishes must not exceed 2.5 Tog, please ensure floor finishes are suitable for underfloor heating.
The Snug Low-Profile boards should be installed in a staggered format and glued together, the boards can also be plugged and screwed down if required. Uneven floors can be self-levelled or the groove boards can be tiled down using standard tile adhesive, ensuring the adhesive fully covers and supports them.
Both the small and large Snug end supports should be plugged and screwed when installing.
This flexible and versatile system can be laid using pipe design options:
Serpentine
Double-back Serpentine
