Overview

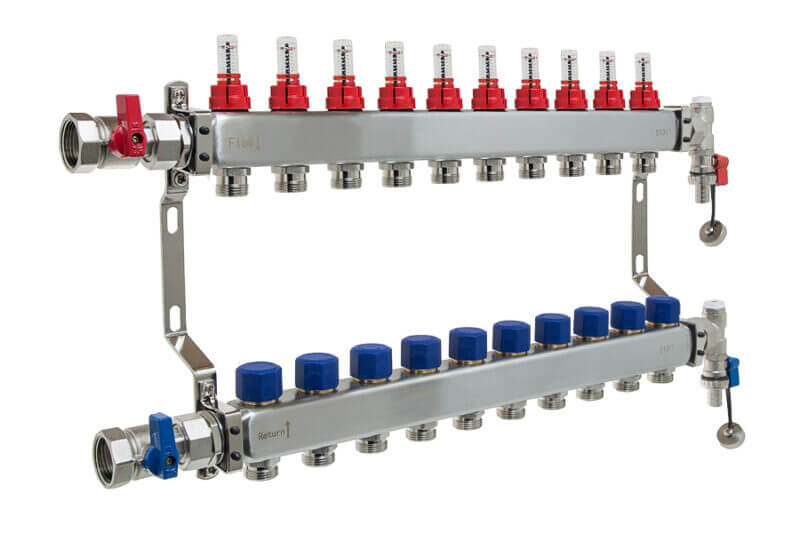

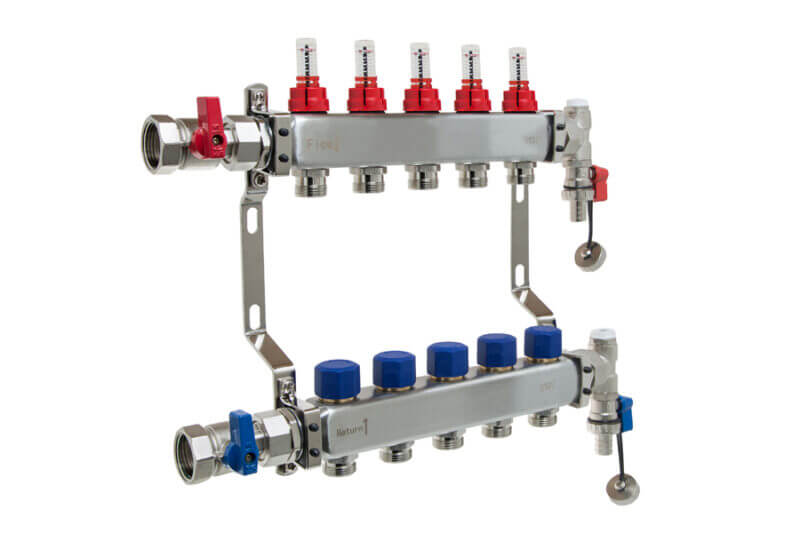

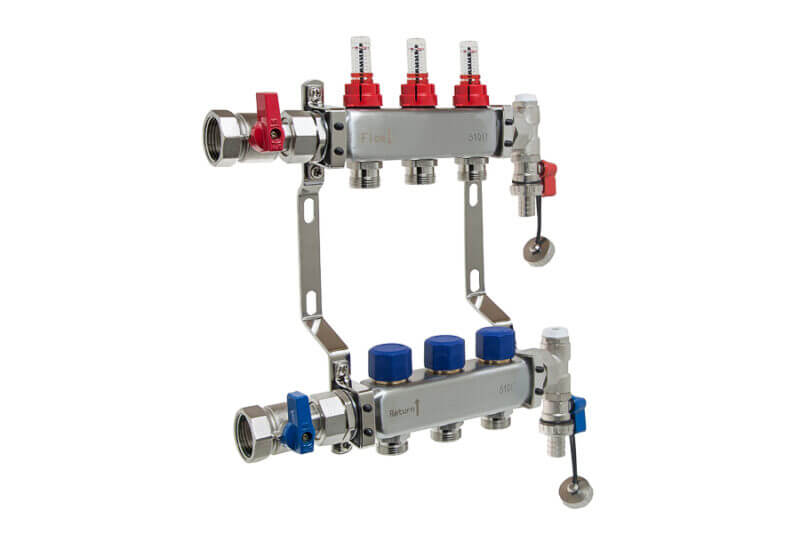

Stainless steel manifolds from Snug are specifically for use on underfloor heating systems.
These consist of two manifold bars, one for the flow and one for the return, complete with ball valves, drain/ filling valves and air vents. On the flow bar each port has a high performance Taconova flow indicator, with isolator including an easy-to-read gauge-glass. Each port on the return bar is equipped with an integral control valve and protection cap which allows the user to adjust the volume of water or can be removed to accept a Manifold Thermoelectric Head.
Available in a range of sizes, from 2 to 12 ports, providing multi-room control and the ability to run different underfloor heating systems from just one manifold. You’ll find them quick and easy to install as well as simple to expand for future projects.
Download Data Sheet
Features and Benefits
| Valves on return manifold accept a Manifold Thermoelectric Head for remote control of each zone |
| 1” ball valves, filling and drain-off points are included |
| Connections are Euroconus and a range of fittings are available to suit most UK pipe sizes |
| Flow meters with isolating valves are included |
| High quality manufacturing, meeting BS EN1264-4 |
| Made from high-grade 304 stainless steel to avoid corrosion |
| No maintenance needed |
| Partially pre-assembled, ready to fit to the wall |
| Maximum supply pressure | 6 bar |
| Maximum temperature | 60⁰C |
| Connections | 1″ FBSP |
| Flow rate range | 0-5 l/m |
| Stroke on circuit control valve | 3mm |
